SKU: CC01850-Q10+

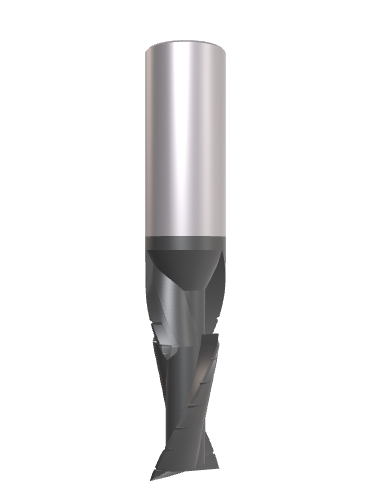

Custom Compression - CC01850 Qty 10+

$23190
Custom 2 Flute Compression Chipbreaker; Rotation: RH; Material: 10%Co; Overall Length: 4.000 inch; Cutting Length: 1.625 inch; Shank Diameter: 0.750 inch; Cutting Diameter: 0.750 inch; Helix Angle: 30.0 degrees; Upcut Length: 1.250 inch
Customize This Tool

Specifications
  • Tool Type
    Compression
  • Flute Style
    Chipbreaker
  • Number of Flutes
    2
  • Carbide Grade
    10%Co
  • Coating
    BLACK DIAMOND™
  • Cutting Diameter
    0.75 in
  • Shank Diameter
    0.75 in
  • Overall Tool Length
    4.0 in
  • Cutting Edge Length
    1.625 in
  • Upcut Length
    1.25 in
  • Tool Rotation
    RH
  • Helix Angle
    30
Custom Compression - CC01850
Frost CNC Tooling

Custom Compression - CC01850 Qty 10+

$23190
Custom 2 Flute Compression Chipbreaker; Rotation: RH; Material: 10%Co; Overall Length: 4.000 inch; Cutting Length: 1.625 inch; Shank Diameter: 0.750 inch; Cutting Diameter: 0.750 inch; Helix Angle: 30.0 degrees; Upcut Length: 1.250 inch
View product
