SKU: CF06743

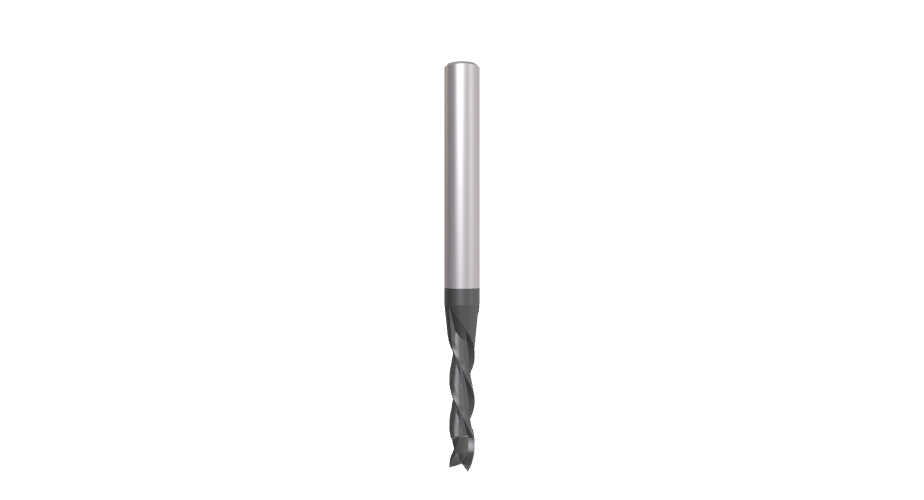

Custom Compression - CF06743

$7134
Custom 3 Flute Compression Finisher; Rotation: RH; Material: 10%Co; Overall Length: 3.000 inch; Cutting Length: 0.875 inch; Shank Diameter: 0.250 inch; Cutting Diameter: 0.188 inch; Helix Angle: 30.0 degrees; Upcut Length: 0.250 inch
Customize This Tool

Specifications
  • Tool Type
    Compression
  • Flute Style
    Finisher
  • Number of Flutes
    3
  • Carbide Grade
    10%Co
  • Coating
    BLACK DIAMOND™
  • Cutting Diameter
    0.188 in
  • Shank Diameter
    0.25 in
  • Overall Tool Length
    3.0 in
  • Cutting Edge Length
    0.875 in
  • Upcut Length
    0.25 in
  • Tool Rotation
    RH
  • Helix Angle
    30
